Connecting solar panels in series
Connecting solar panels in a series is a widely used technique in solar energy systems. This approach increases the voltage while keeping the current the same. It is particularly beneficial for both off-grid and grid-tied systems that need higher voltage levels to enhance efficiency and minimize power losses. In this article, we will discuss the principles behind series connections, their advantages and disadvantages, and the steps required to correctly wire solar panels in series.
شمسی توانائی کے نظاموں میں شمسی پینلز کو سیریز میں جوڑنا وسیع پیمانے پر استعمال ہونے والی تکنیک ہے۔ یہ نقطہ نظر کرنٹ کو یکساں رکھتے ہوئے وولٹیج کو بڑھاتا ہے۔ یہ خاص طور پر آف گرڈ اور گرڈ سے منسلک دونوں نظاموں کے لیے فائدہ مند ہے جنہیں کارکردگی کو بڑھانے اور بجلی کے نقصانات کو کم کرنے کے لیے زیادہ وولٹیج کی ضرورت ہوتی ہے۔ اس مضمون میں، ہم سیریز کنکشن کے پیچھے اصولوں، ان کے فوائد اور نقصانات، اور سیریز میں شمسی پینل کو درست طریقے سے تار کرنے کے لیے درکار اقدامات پر تبادلہ خیال کریں گے۔
Understanding Series Connection

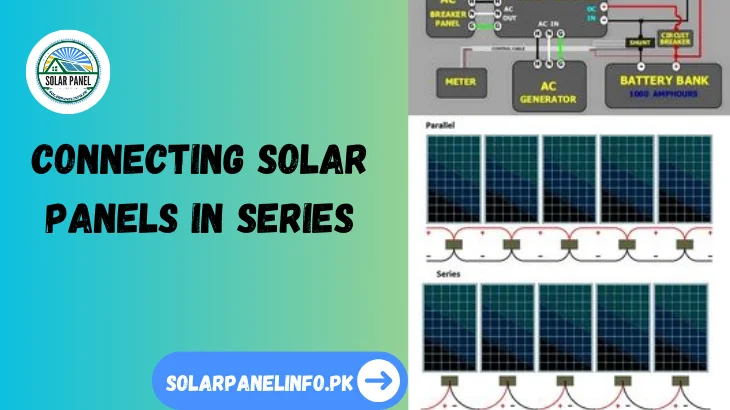

A series connection of solar panels involves linking them end-to-end, with the positive terminal of one panel connecting to the negative terminal of the next. This configuration effectively increases the total voltage output while maintaining the same current level.
For instance, when two 12V solar panels with a current rating of 5A are connected in series, the resulting output would be:
- Voltage: 12V + 12V = 24V
- Current: 5A (remains unchanged)
This principle holds regardless of the number of panels being connected, provided they are of the same type and specifications.
Advantages of Connecting Solar Panels in Series
Increased Voltage Output(وولٹیج آؤٹ پٹ میں اضافہ)
By connecting components in a series configuration, the overall voltage is elevated. This can be advantageous for applications that necessitate higher voltages for optimal performance.
Enhanced Performance Over Long Distances(لمبی دوری پر بہتر کارکردگی)
Utilizing higher voltage reduces the required current, which in turn minimizes resistive losses that can occur when transmitting electricity over extended distances.
Better Compatibility with MPPT Charge Controllers(MPPT چارج کنٹرولرز کے ساتھ بہتر مطابقت)
Series wiring aligns well with Maximum Power Point Tracking (MPPT) charge controllers, as they tend to operate more effectively with higher voltage inputs. This leads to improved energy conversion efficiency.
Reduction of Connection Points(کنکشن پوائنٹس کی کمی)
Series wiring typically involves fewer junctions and connectors when compared to parallel configurations. This simplification decreases the number of potential failure points within the system.
Disadvantages of Series Connection
Impact of Shading on Performance(کارکردگی پر شیڈنگ کا اثر)
When one solar panel in a series connection experiences shading or malfunctions, it can greatly diminish the overall efficiency of the entire string of panels. This highlights the importance of ensuring that all panels receive adequate sunlight.
Voltage Limitations(وولٹیج کی حدود)
It is crucial to be aware that certain charge controllers and inverters have specific voltage limitations. Exceeding these thresholds can not only lead to inefficiencies in the system but may also result in potential damage to the components.
Mismatch Issues(مماثل مسائل)
Connecting solar panels with varying voltage and current ratings in series can create significant power losses and hinder optimal performance. It’s essential to use panels that are well-matched in specifications to maximize energy output.
Step-by-Step Guide to Connecting Solar Panels in Series
Step 1: Gather Necessary Equipment(ضروری سامان اکٹھا کریں)
To begin the process, ensure you have the following equipment on hand:
- Solar panels with matching voltage and current ratings
- MC4 connectors or a junction box
- A multimeter for voltage testing
- Wiring cables suitable for direct current (DC) voltage
- A charge controller and an inverter that are compatible with the expected voltage.
Step 2: Identify Panel Terminals(پینل ٹرمینلز کی شناخت کریں)
Each solar panel features a positive (+) and a negative (-) terminal. These terminals are essential for establishing a series connection between the panels.
Step 3: Connect the Panels in Series(پینلز کو سیریز میں جوڑیں)
Start by connecting the positive terminal of the first panel to the negative terminal of the second panel. Continue this connection pattern for any additional panels, ensuring that each connection follows the positive-to-negative sequence. The final output connection will be made using the remaining positive terminal of the first panel and the negative terminal of the last panel in the series.
Step 4: Measure the Output Voltage(آؤٹ پٹ وولٹیج کی پیمائش کریں)
Before linking the system to a charge controller or inverter, it’s crucial to use a multimeter to measure the total output voltage. The value obtained should equal the sum of the voltages of all individual panels connected in series.
Step 5: Connect to Charge Controller or Inverter(چارج کنٹرولر یا انورٹر سے جڑیں)
After verifying the output voltage, proceed to connect the final positive and negative terminals to the charge controller or inverter. Ensure the correct polarity during this connection to avoid any potential damage to the equipment.
Best Practices for Series Connection
To optimize the performance of your solar panel system, consider the following guidelines:
Use Identical Panels(ایک جیسے پینل استعمال کریں)
It is crucial to select panels that have the same voltage and current ratings within the series. This uniformity helps to prevent power losses and ensures efficient energy conversion.
Minimize Shading(شیڈنگ کو کم سے کم کریں)
Installing your solar panels in an area that receives full sun exposure is essential. Avoiding shaded locations will help maintain the panels’ efficiency, as any shading can significantly diminish their performance.
Check Voltage Ratings(وولٹیج کی درجہ بندی چیک کریں)
Before installation, verify that the total voltage produced by the panels does not exceed the input limits of your charge controller or inverter. This precaution will help safeguard the equipment and enhance system reliability.
Secure Connections(محفوظ کنکشنز)
Proper connectors should be used, along with weatherproofing techniques, to ensure that all connections are secure. This step is vital in preventing connection failures and protecting against corrosion, thereby extending the lifespan of your system.
By following these guidelines, you can maximize the efficiency and longevity of your solar energy system.
Conclusion
Connecting solar panels in series is a powerful approach to boost voltage while keeping the current constant. This setup is especially beneficial for enhancing efficiency, reducing power losses, and ensuring compatibility with MPPT charge controllers. Nonetheless, it is crucial to take into account aspects such as shading, voltage constraints, and panel compatibility to optimize performance. By adhering to proper installation techniques, securing connections, and using identical panels, you can establish a dependable and efficient solar energy system.
شمسی پینلز کو سیریز میں جوڑنا وولٹیج کو بڑھانے کے لیے کرنٹ کو مستقل رکھتے ہوئے ایک طاقتور طریقہ ہے۔ یہ سیٹ اپ کارکردگی کو بڑھانے، بجلی کے نقصانات کو کم کرنے اور MPPT چارج کنٹرولرز کے ساتھ مطابقت کو یقینی بنانے کے لیے خاص طور پر فائدہ مند ہے۔ بہر حال، کارکردگی کو بہتر بنانے کے لیے شیڈنگ، وولٹیج کی رکاوٹوں، اور پینل کی مطابقت جیسے پہلوؤں کو مدنظر رکھنا بہت ضروری ہے۔ تنصیب کی مناسب تکنیکوں پر عمل کرتے ہوئے، کنکشن کو محفوظ بنا کر، اور ایک جیسے پینلز کا استعمال کرتے ہوئے، آپ ایک قابل اعتماد اور موثر شمسی توانائی کا نظام قائم کر سکتے ہیں۔
FAQ’s
What happens when solar panels are connected in series?
When solar panels are connected in series, their voltages increase while the current remains constant, making them suitable for high-voltage applications.
Why is shading a problem in a series connection?
Shading on one panel in a series connection decreases the overall power output of the entire string, as the current remains uniform across all panels.
How can I ensure the best performance from a series connection?
Utilize the same type of solar panels, reduce shading, check voltage thresholds, and guarantee reliable and weather-resistant connections.
